FIST-GC02 A16 SC54 Fiber Optic Splice Closure Dome Type 288cores with 54 DX SC adapter

Application :

It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.

Features:

1. Excessive fibers can be stored in storage baskets. Easy in fiber management.

2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.

3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

4 . The splice trays are hinged for access to any splice tray, without disturbing other trays.

5. The inner parts and fixing parts are made of stainless steel

6. With a earthing device protect it from damage by lightning

7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole) and in many applications(tap-off, expressed, branch, and repair)

Technical Parameter:

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade

2.Atmospheric Pressure: 70~ 150Kpa

3.Axial Tension: >2000N/ 1min

4. Stretching Resistance: 2500N/ 10 square centimetre( 1min)

5. Insulation resistance: >2*104MΩ

6. Voltage Strength: 15KV/ 1min, no arcover or breakdown

7. Pressure in the water: 50m/72hours

8. Splice tray with optical taking-in radius: 30mm. Low optical loss.

Structure Diagram:

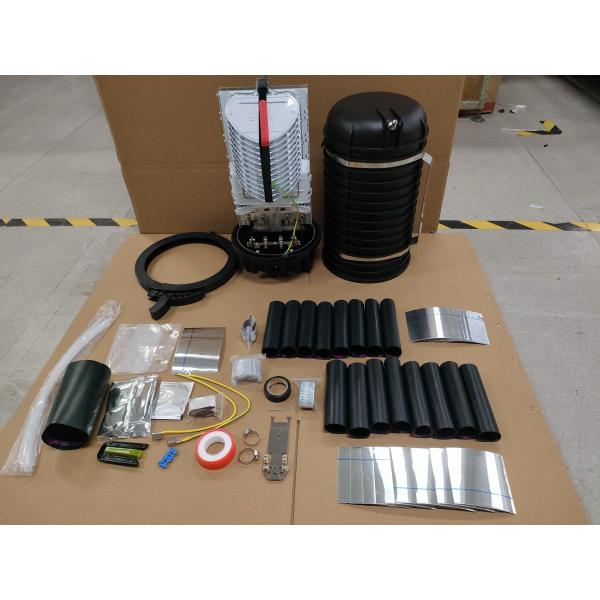

Producs photos:

Delivery Ways:

By Sea or by Car or by Air.
